A counterbalance Forklift Reach Truck, on the other hand, can lift loads that are too high for a reach truck. These trucks are designed to have a large rear counterbalance, which compensates for the load lifted at the front. This type of truck is best for situations where the load is too heavy to reach.
Rough terrain forklift trucks have large pneumatic tires and are typically powered by an internal combustion engine. These engines can run on gasoline, diesel, or propane. They can be equipped with a telescoping boom or vertical tower to lift loads up and out of the machine. These trucks are ideal for a variety of jobs, including construction sites and gravel pits.

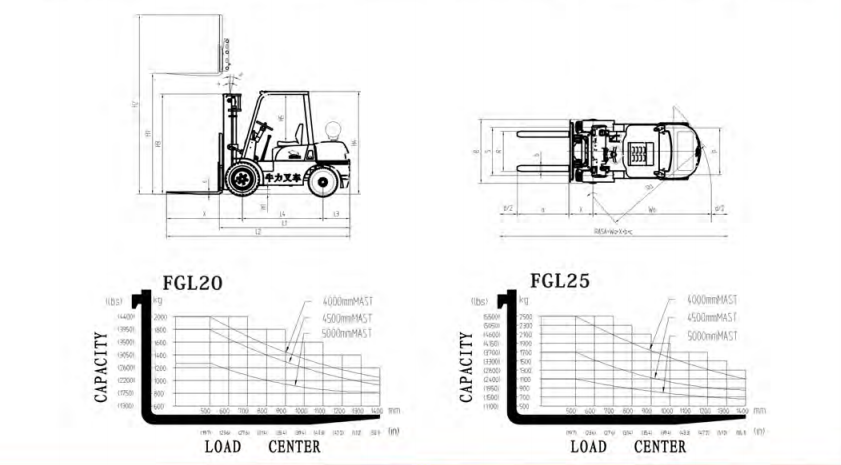

| Model | Unit | FGL20 | FGL25 | ||
| Power Type | GAS/LPG | GAS/LPG | |||
| Rated Capacity | kg | 2000 | 2500 | ||
| Load Centre | mm | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | ||
| Fork Size | L*W*T | mm | 1070*122*40 | 1070*122*40 | |
| Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |
| Front Overhang(Wheel center to fork face) | mm | 480 | 480 | ||
| Ground Clearance(Bottom Of mast) | mm | 120 | 120 | ||
Overall Dimension | Length of fork(With/Without fork) | mm | 3654/2570 | 3654/2570 | |
| Overall Width | mm | 1160 | 1160 | ||
| Mast Lowered Height | mm | 1995 | 1995 | ||
| Mast Lowered Height(With backrest) | mm | 4110 | 4110 | ||
| Overhead Guard Height | mm | 2130 | 2130 | ||
| Turning Radius(outside) | mm | 2340 | 2340 | ||
| Min.intersection aisle | mm | 2400 | 2400 | ||
| Speed | Travel(Full/Empty load) | km/h | 17/19 | 17/19 | |
| Lifting(Full/Empty load) | mm/s | 530/550 | 530/550 | ||
| Max.Gradeability | % | 20 | 20 | ||
| Tire | Front | 7.00-12-12PR | 28*9-15-12PR | ||
| Rear | 6.00-9-10PR | 6.50-10-10PR | |||
| Wheelbase | mm | 1600 | 1850 | ||
| Self weight | kg | 3480 | 4500 | ||
| Battery | Voltage/Capacity | V/Ah | 12/120 | 12/120 | |
| Engine | Model | K21 | K21 | ||
| Manufacturer | NISSAN | NISSAN | |||
| Rated output/r.p.m. | Kw/r.p.m | 31.2/2250 | 31.2/2250 | ||
| Rated torque/r.p.m. | Nm/r.p.m | 143.7/1600 | 143.7/1600 | ||
| No.of Cylinder | 4 | 4 | |||
| Bore × Stroke | mm | 89*83 | 89*83 | ||
| Displacement | cc | 2065 | 2065 | ||
| Fuel Tank Capacity | L | 60 | 60 | ||
| Transmission | Type | Machanical/Hydrauic | Machanical/Hydrauic | ||
| Stage | FWD/RVS | 1/1(2/2) / 1/1 | 1/1(2/2) / 1/1 | ||
| Operating Pressure for Attachment | Mpa | 17.5 | 17.5 | ||
