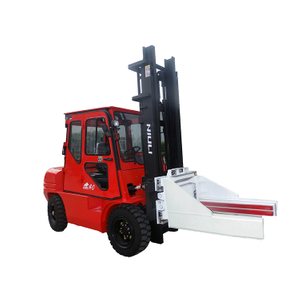

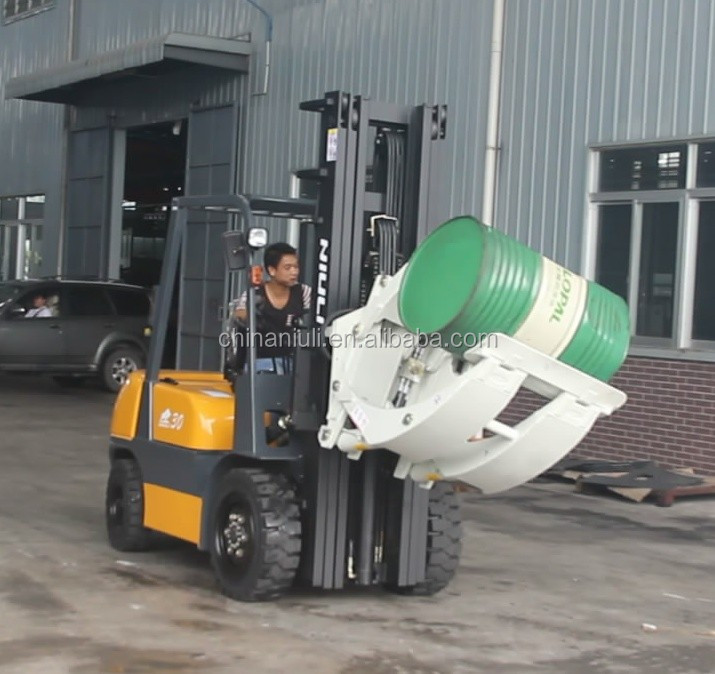

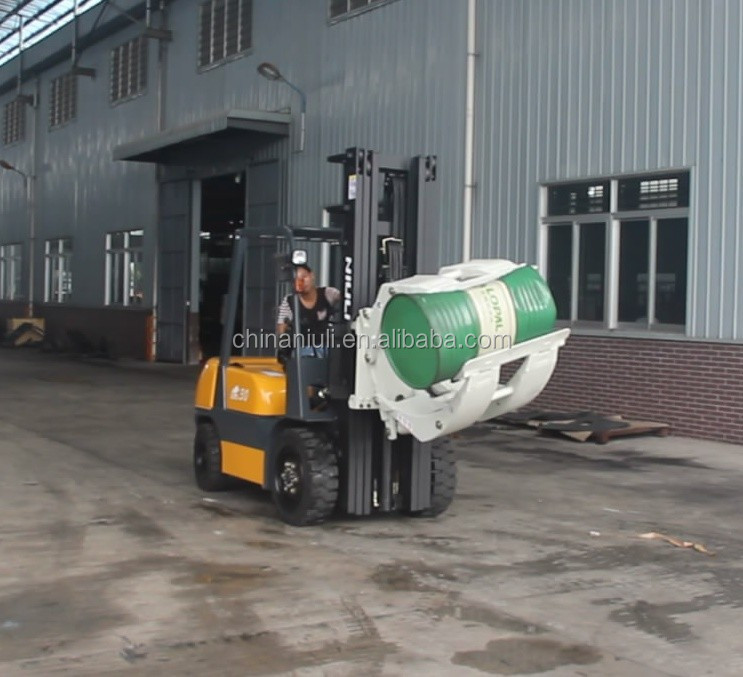

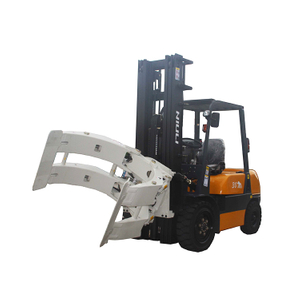

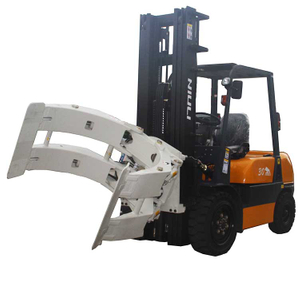

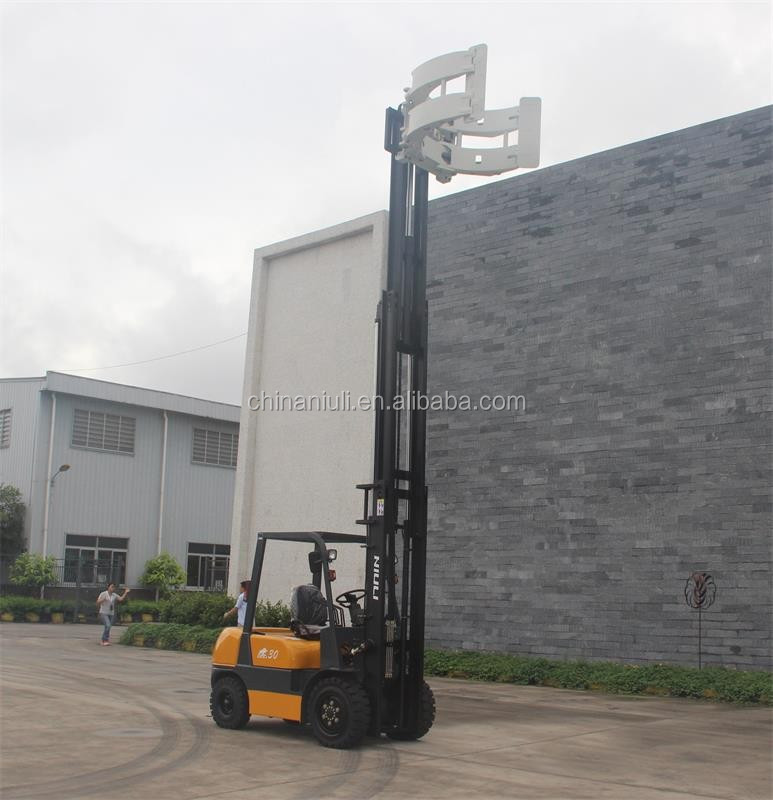

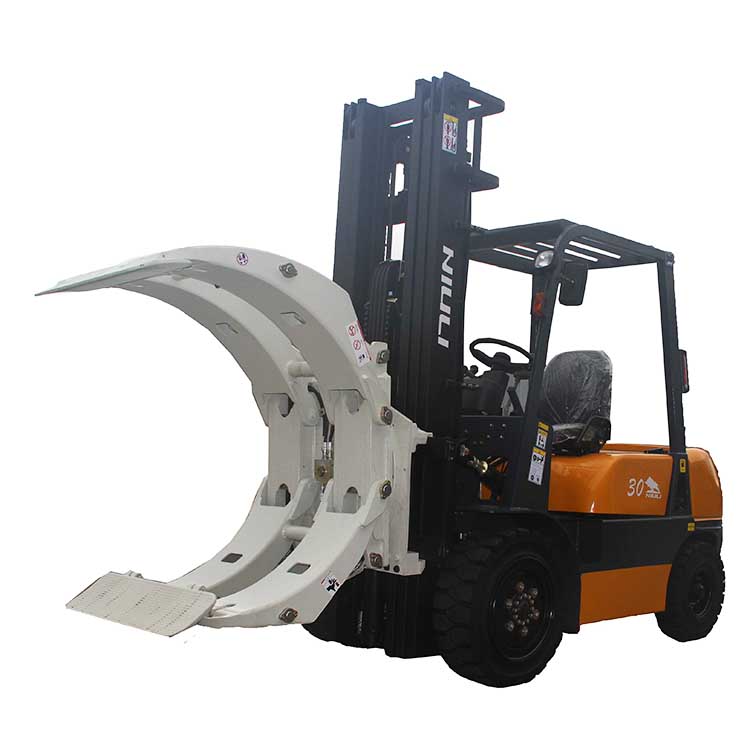

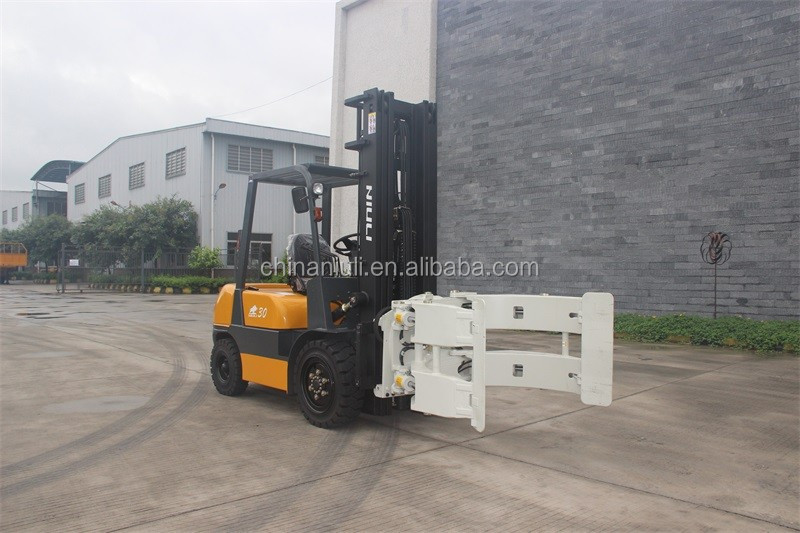

3000kgs Diesel Forklift With Paper Roll Clamp,ISUZU Engine
1. Niuli Brand Warranty: 1 years or 2000 working hours spare parts warranty for Niuli forklifts which occurs first.
2. Niuli 24hours Service system: Any quality claim or question from Niuli customers will be replied by Niuli service man within 24 hours, to assure all customers get a quick feedback from Niuli for their problem.
3. Niuli 48hours Service system: Once quality claim from customers are accepted by Niuli , we will arrange to send spare part to them for free within 48hours, to guarantee a strong spare parts supporting for customers.
4. Niuli Online Service system: Niuli is the only factory in China to issue online service system for customers, It includes Online Claim system, Online Technique system, Online Forklift tracking system, Online spare parts order system, Customers can submit their quality claim, ask technique help, Tracking their forklifts and Order spare parts online easily, All this will be replied by service man within 24hours.
5. Free Training System: Niuli supply a free training for customers to help them know better about the quality of forklifts, and also its performance.
| General | 1 | Model | CPC30/CPCD30 | CPC35/CPD35 | ||||||
| 2 | Power Type | Diesel/GAS | Diesel/GAS | |||||||
| 3 | Rated capacity | Kg | 3000 | 3500 | ||||||
| 4 | Load center | mm | 500 | 500 | ||||||
| Charactertic | 5 | Lifting height | mm | 3000 | 3000 | |||||
| 6 | Fork size | mm | 1070*122*40 | 1070*122*40 | ||||||
| 7 | Mast Tilt Angle | Deg | 6°/12° | 6°/12° | ||||||
| 8 | Front Overhang(Wheel center to fork face) | mm | 500 | 500 | ||||||
| 9 | Ground Clearance(Bottom Of Mast) | mm | 126 | 126 | ||||||
| 10 | Overall Dimension | Overall length(with/without fork) | mm | 3790/2700 | 3790/2700 | |||||
| 11 | Overall width | mm | 1230 | 1230 | ||||||
| 12 | Mast lowered height | mm | 2105 | 2105 | ||||||
| 13 | MastExtended height(with backrest) | mm | 4110 | 4110 | ||||||
| 14 | Overhead guard height | mm | 2140 | 2140 | ||||||
| 15 | Turning Radius(outside) | mm | 2415 | 2415 | ||||||
| 16 | Min. intersecting aisle | mm | 2500 | 2500 | ||||||
| Performance | 17 | Speed | Travel(Full/Empty load) | km/h | 18/19 | 18/19 | ||||
| 18 | Lifting(Full/Empty load) | mm/s | 460/540 | 530/540 | ||||||
| 19 | Max.Gradeability | % | 20 | 20 | ||||||
| Chassis | 20 | Tire | Front | 28x9-15-12PR | 28x9-15-12PR | |||||
| 21 | Rear | 6.50-10-10PR | 6.50-10-10PR | |||||||
| 22 | Wheelbase | mm | 1650 | 1650 | ||||||
| 23 | Self Weight | kg | 4280 | 4500 | ||||||
| Transmission | 24 | Battery | Voltage/Capacity | V/Ah | 12/120 | 12/120 | ||||

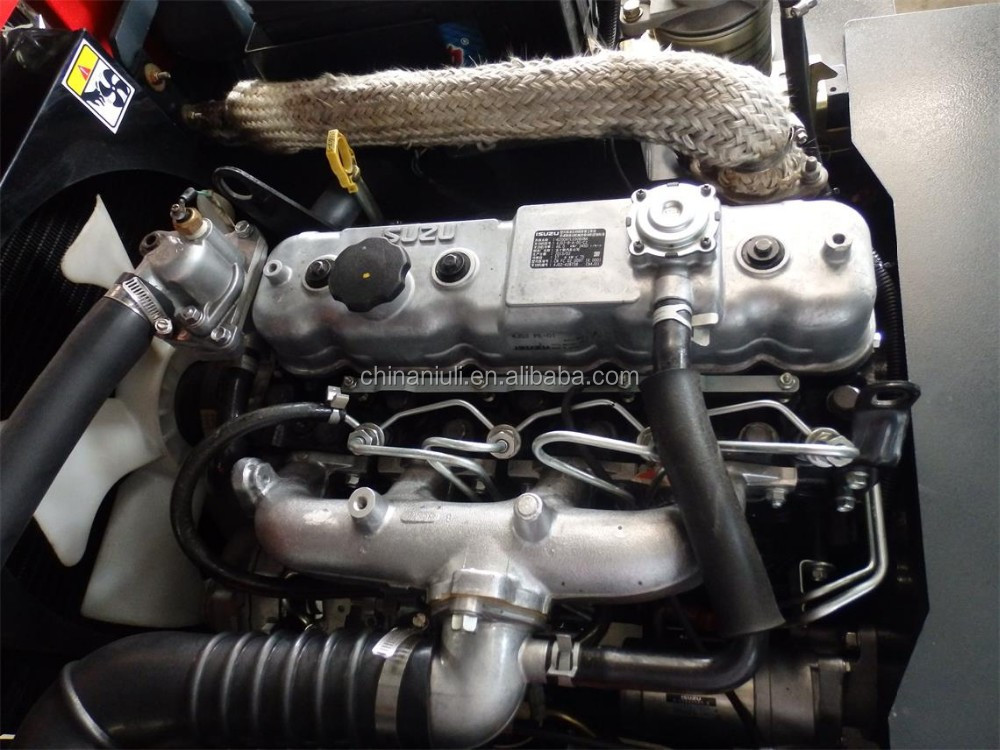

| 25 | Engine | Model | C240 | C490BPG | QC495G | |||||
| 26 | Manufacturer | ISUZU | XinChang | Quanchai | ||||||
| 27 | Rated output/r.p.m | kW/rpm | 34.3/2500 | 34.3/2500 | 42/2650 | |||||
| 28 | Rated torque/r.p.m | Nm/rpm | 137.7/1800 | 160/1800-2000 | 174/1980 | |||||
| 29 | No. of cylinder | 4 | 4 | 4 | ||||||
| 30 | Bore x Stroke | mm | 86x102 | 90x105 | 95x105 | |||||
| 31 | Displacement | cc | 2369 | 2670 | 2980 | |||||
| 32 | Fuel Tank capacity | L | 60 | 60 | 60 | |||||
| 33 | Transmission | Machanical/Hydraulic | Machanical/Hydraulic | |||||||
| 34 | Operation Pressure for Attachment | Mpa | 17.5 | 17.5 | ||||||
