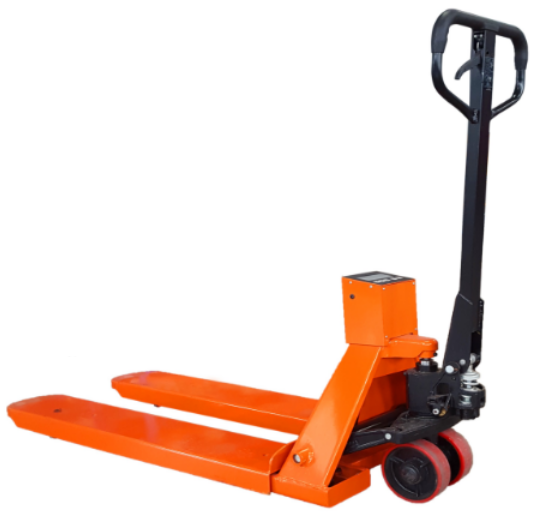

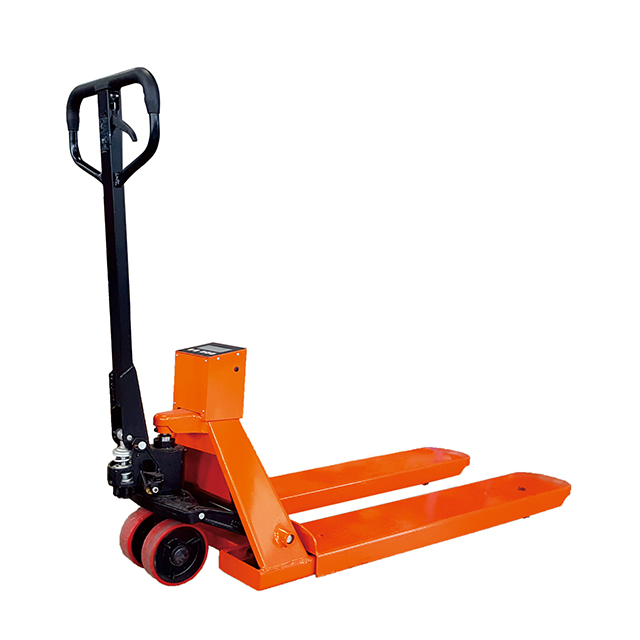

The electronic scale truck for handling and weighing at the same time is especially suitable for cargo handling and weighing in railway, highway, commerce, industrial and mining operations. The scale platform is composed of manual hydraulic handling structure and weighing originals. The scale platform is driven by hydraulic pressure to move up and down, and the vehicle is manually driven.
● Imported special pure sensor, weighing instrument;
● Built-in rechargeable battery and charger;
● LCD liquid crystal display, automatic backlight.
| Model | CBY-CW I |
| Capacity(kg) | 1000/1500/2000/2500 |
Total lift height(mm) | 175 |
| Lowered fork height(mm) | 65 |
| Width overall forks(mm) | 550/685 |
| Fork length(mm) | 1150/1220 |
| Steering wheel(mm) | φ160×50 |
| Fork wheel(mm) | φ64×70 |
| Truck weight(kg) | 109-113 |
