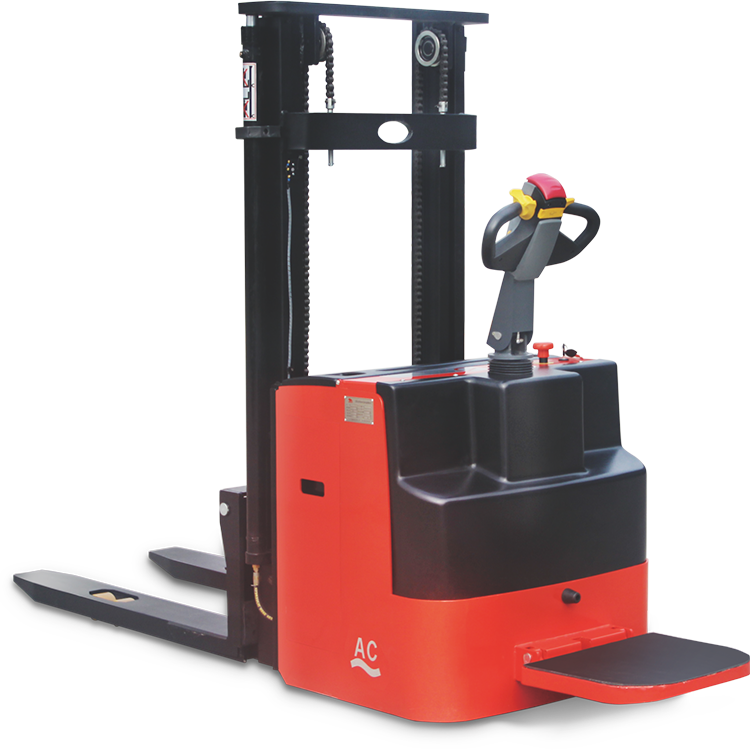

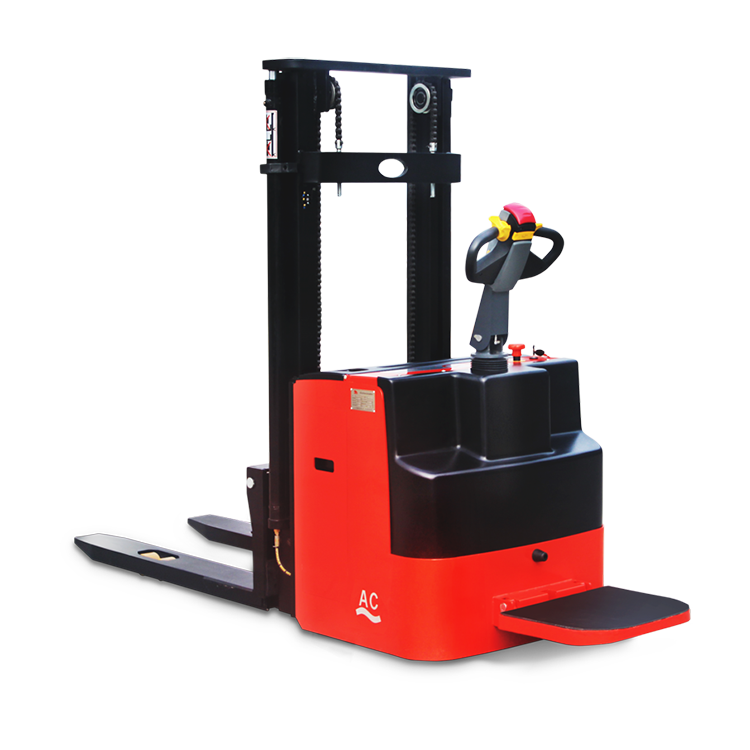

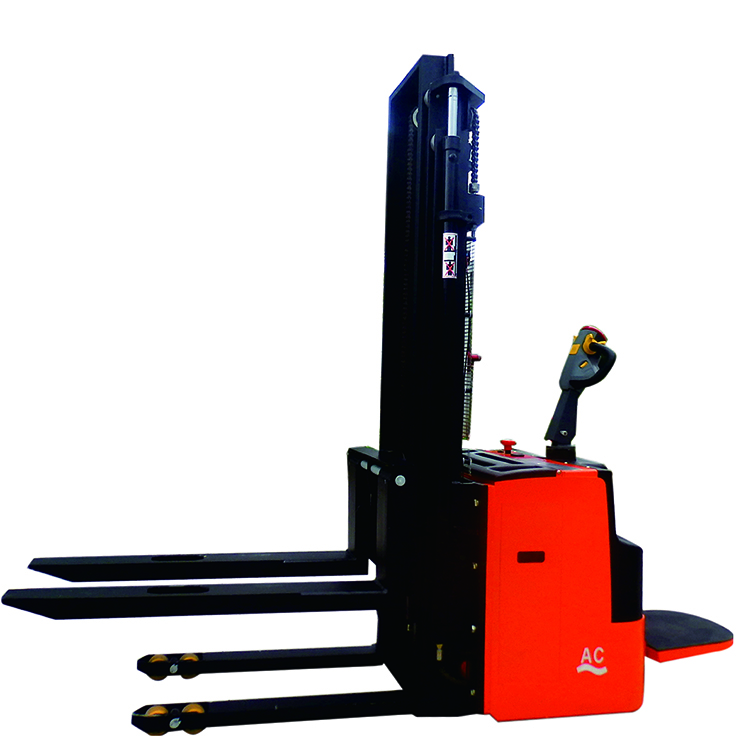

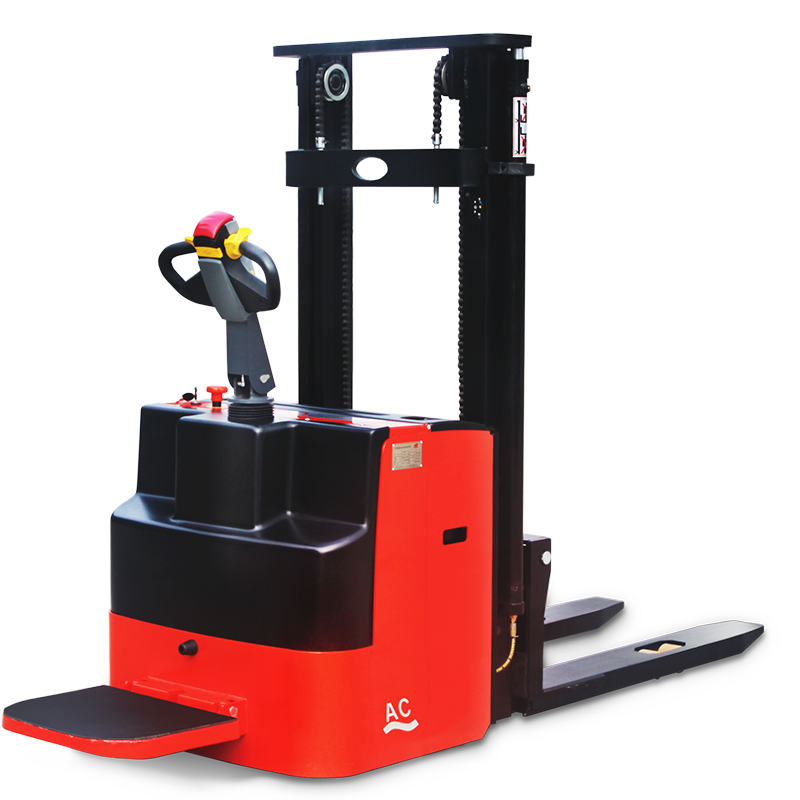

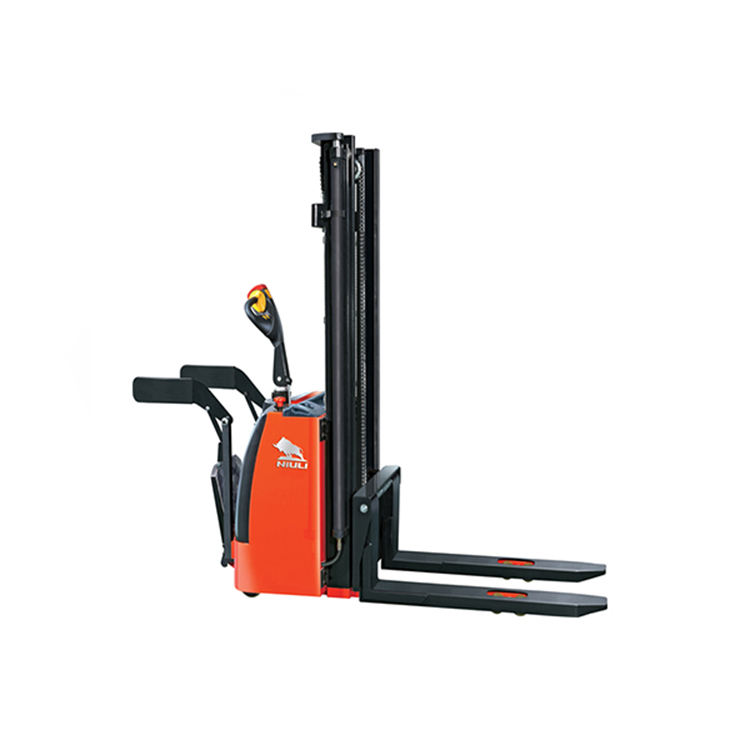

The Full Electric Stacker with different loading capacities and various lifting heights is built for stacking in intensive applications in stores and facories , applications that require durable high capacity trucks that are also capable of horizontal transport purposes .
Power Stacker Specifications:
Model | CTQ10/16,15/16,20/16 | CTQ10/20,15/20,20/20 | CTQ10/25,15/25,20/25 | CTQ10/30,15/30 |
Capacity(kg) | 1000/1500/2000 | 1000/1500/2000 | 1000/1500/2000 | 1000/1500 |
Load eenter(Q,mm) | 500 | 500 | 500 | 500 |
Front wheel size(mm) | φ80x60 | φ80x60 | φ80x60 | φ80x60 |
Rear wheel size(mm) | φ130x55 | φ130x55 | φ130x55 | φ130x55 |
Traction wheel(mm) | φ250x80 | φ250x80 | φ250x80 | φ250x80 |

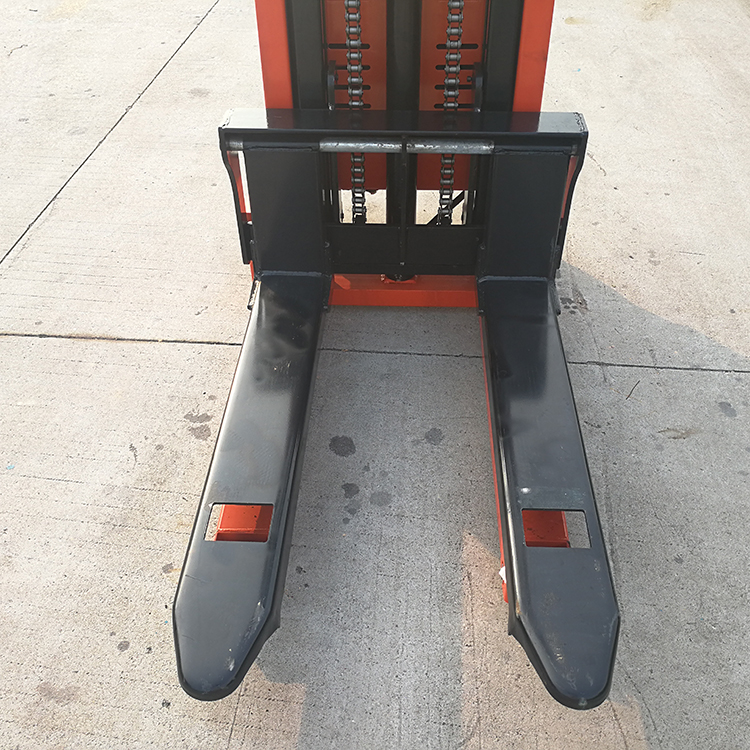

Fork Dimensions(L3,mm) | 1150x160x60 | 1150x160x60 | 1150x160x60 | 1150x160x60 |
Max.lifting height(H2,mm) | 1600 | 2000 | 2500 | 3000 |
Extended height(H3,mm) | 2080 | 2500 | 3000 | 3500 |
Closed height H3(H1,mm) | 2080 | 1580 | 1850 | 2080 |
Fork clearance from ground(H5,mm) | 80-90 | 80-90 | 80-90 | 80-90 |
Total length(L1,L2mm) | 2070/2360 | 2070/2360 | 2070/2360 | 2070/2360 |
