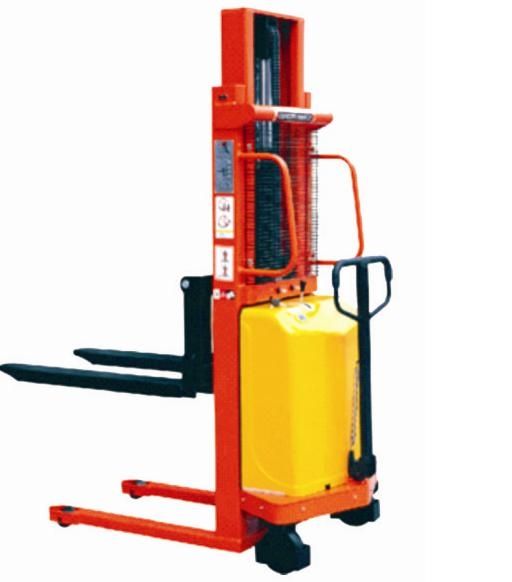

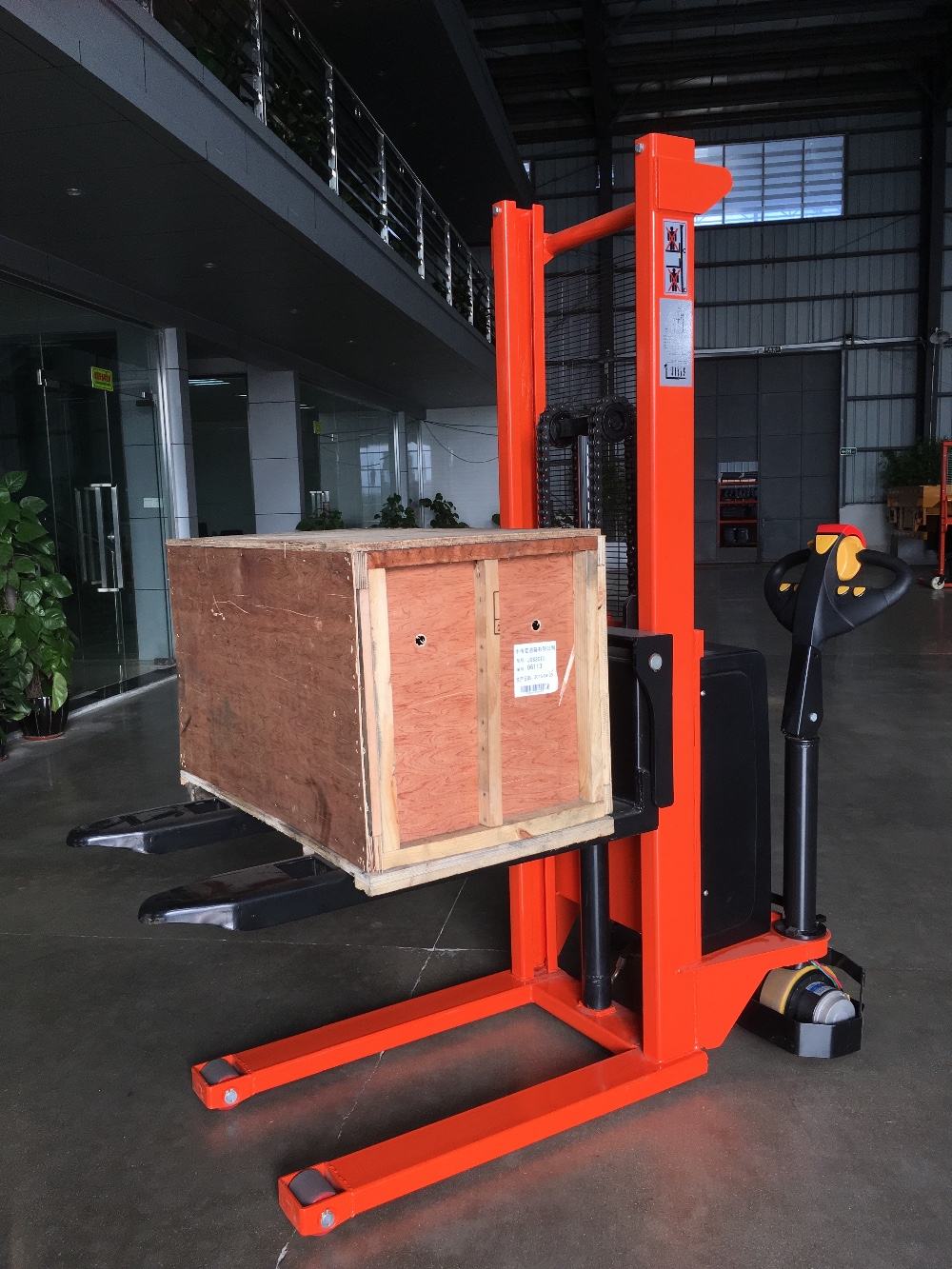

Niuli Self-propelled electric stacker is an economical choice for a variety of basic material handling needs,which is a widely used for loading and unloading in short-distance transportation. It is reliable and more efficient.There is no noise and pollution.The malfunction rate is very low.
NIULI Self-propelled electric Stacker CTDC15/16 | |||
Main performance parameters | Load Capacity | Kg | 1500 |
Max. Lifting Height | mm | 1600 | |
Load Center | mm | 500 | |
Traction Motor | Travel speed (max. & min.) | km/h | 5.9/4.0 |
Max. grade ability(load/unload) | % | 10/15 | |
Motor Type | DC | ||
Output | W | 750 | |
Motor Speed | rpm | 2650 | |
Hydraulic system | Lifting Speed(load/unload) | mm/s | 20/25 |
Lowering Speed(load/unload) | mm/s | 25/20 | |
Rate flow | KN | 125 | |
Battery | Voltage/Capacity | V/Ah | 24/120 |
Demensions | Fork length | mm | 1000 |
Min. height of forks | mm | 90 | |
Out width of legs | mm | 780 | |
Adjustable width of forks | mm | 360-680 | |
Overall size | mm |
1) Easy to operate,only one handle to drive and lift&lower the goods.Greatly improve the work efficiency
2) Economic:only no more than half of Full-ele stacker,but with similar performance.
3) Very low malfunction rate,NIULI has very mature manufacturing technology and good market reaction.
4) Unique design ensuring the safety of the Operator.
Name: Control Handle
Brand: Niuli
Original: China
Reliable and easy to operate.With the rebound button to ensure the safety of operator.

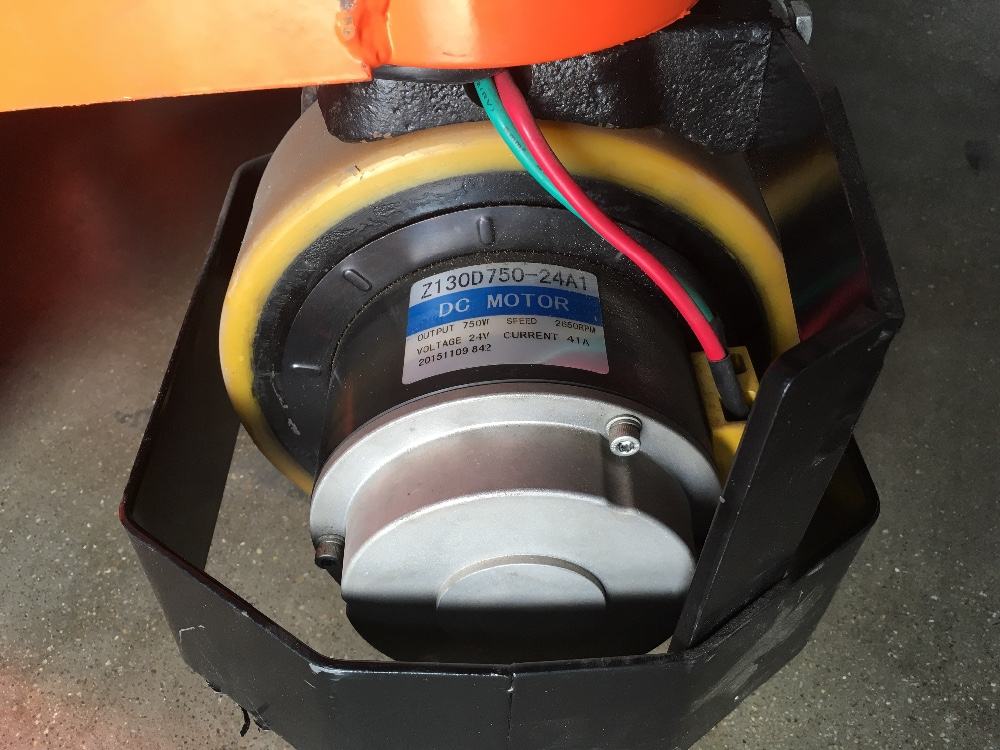

Name: Traction Motor
Brand: JIada
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Also with the out frame around the motor ensuring the operator's safety.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
