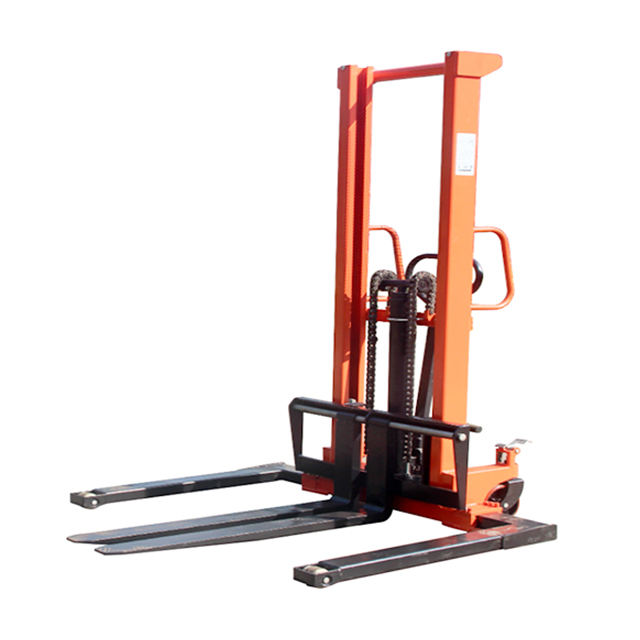

NIULI Hydraulic Manual Pallet Stacker will help you utilize storage space while increasing handling efficiency. It has a hand crank that lifts the forks to selected height up to 3000mm and lifting capacity from 500kg to 2000kg, it is a small lift truck but is small enough to operate efficiently in aisles. Manual hydraulic stackers can easily turn in the aisle, pick up a load and place it on the shelf of a rack system, it is the right economical solution for lifting and moving pallets and cargoes.
| Modle | unit | CTY-EA10 | CTY-EA15 | CTY-EA10S | CTY-EA15S |
| Rated lifting capacity(kg) | kg | 1000 | 1500 | 1000 | 1500 |
| Low height of fork | mm | 65 | 65 | 65 | 65 |
| Fork lift height | mm | 1600 | 1600 | 2000/2500/3000 | 000/2500/3000 |
| Fork Length(L)(MM) | mm | 900 (100*32) | 900 (100*35) | 900 (100x32) | 900 (100*35) |
| Adjustable width of the fork(E)(mm) | mm | 210-850 | 210-850 | 210 〜850 | 210-850 |
| Material of frame | Bending C payment | Bending C paymen | ending C payments | nding C paymen | |
| Material of fork | Forged fork | Forged fork | Forged fork | Forged fork | |
| Lifting speed | mm/stroke | 20 | 14 | 20 | 14 |
| Lov/ering speed | mm/stroke | controllable | controllable | controllable | controllable |
| Outer width of front leg(mm) | mm | 1116-1516 | 1116-1516 | 1116-1516 | 1116-1516 |
| Operations pov/er of the hand crank(kgO | kg | 24 | 32 | 24 | 32 |
| Minimum refuel volume for fuel tank(L) | L | 1.6 | 2 | 2/26/3.1 | 2.5/3.2/39 |
| Front wheel size | mm | <p74x70 | cp74x70 | «p74x70 | q>74x70 |
| Real wheel size | mm | <p180x50 | <p180x50 | <p180x50 | (p180x50 |
| External dimensions | mm | 1455*1116x2115 | 1455*1116*2115 | 1475«1116-1580 1475*1116x1830 1475x1116-2080 | 1475x1116-1580 1475«1116*1830 1475x1116-2080 |
