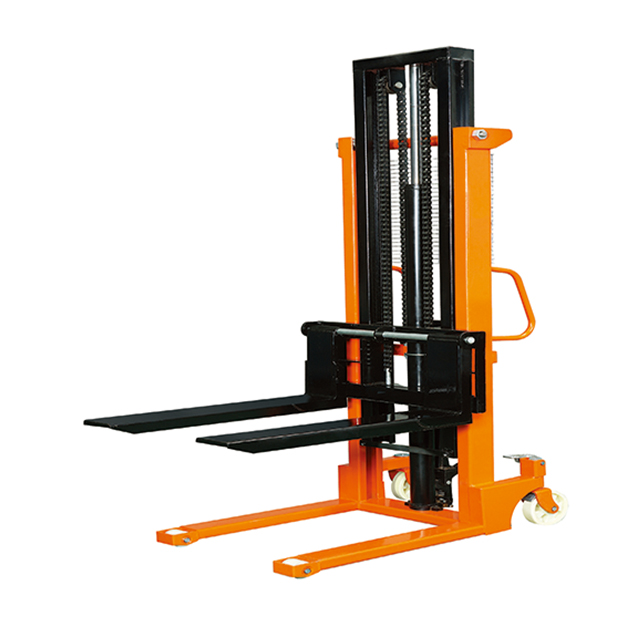

NIULI Hydraulic Manual Pallet Stacker will help you utilize storage space while increasing handling efficiency. It has a hand crank that lifts the forks to selected height up to 3000mm and lifting capacity from 500kg to 2000kg, it is a small lift truck but is small enough to operate efficiently in aisles. Manual hydraulic stackers can easily turn in the aisle, pick up a load and place it on the shelf of a rack system, it is the right economical solution for lifting and moving pallets and cargoes.
Model | CTY-EH1.0 | CTY-EH2.0 |
Rated lifting capacity(kg) | 1000 | 2000 |
Max.lifting height(mm) | 2000/2500/3000 | 2000/2500/3000 |
Lowered height of forks(mm) | 90 | 90 |
Fork length(mm) | 900 | 900 |
Adjustable width of forks(mm) | 320-750 | 320-750 |
lifting speed(mm/s) | 20 | 14 |
Lowering speed(mm/s) | Adjustable | Adjustable |
Outer width of front legs(mm) | 690 | 690 |
Operation power of carank(kg) | 24 | 32 |
Front wheel size(mm) | φ74×52 | φ74×70 |
Rear wheel size(mm) | φ180×50 | φ180×50 |
Overall size(mm) | 1410×780×1540/1790/2040 | 1410×780×1540/1790/2040 |
Truck weight(kg) | 200/220/240 | 200/250/280 |
