Product Superiority
- hand pallet truck use robots welding to ensure the excellent quality and high craft level, which makes sure the stronger and stability of fork chassis and long working life.

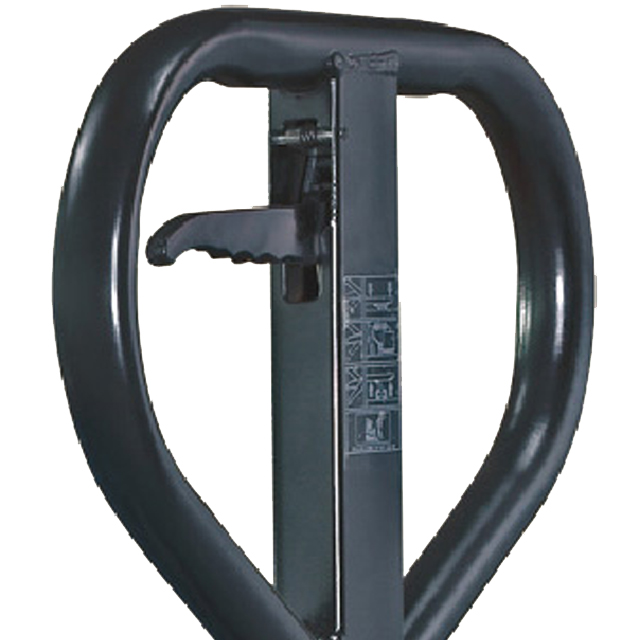

- Ergonomically designed handle with comfortable rubber grip allow the optimized safety and comfortable to ensure the excellent operation of three position operational handle lever for lifting, transporting and lowering purpose.
- Easy access to the lowest pallets and containers with the minimum floor clearance.
- The pallet truck with excellent turning angle of 190 degree to ensure a 4-directional movement capability and it provides the flexibility to maneuver wide loads through standard aisles.
| Model | CBY-JC2.0 | CBY-JC2.0 |
| Capacity(kg) | 2000 | 2000 |
| Min.fork height(mm) | 75 | 75 |
| Max.fork height(mm) | 185 | 185 |
| Lifting height(mm) | 110 | 110 |
| Fork length(mm) | 1150 | 1220 |
| Single fork width(mm) | 150 | 150 |
| Width overall forks(mm) | 550 | 685 |
| Fork wheel-tandem(mm) | Φ70×60 | Φ70×60 |
| Steering wheel(mm) | Φ160×50 | Φ160×50 |
| Self weight(kg) | 55 | 65 |
| Qty/20 feet container(pcs) | 180 | 144 |
Product Superiority
- hand pallet truck use robots welding to ensure the excellent quality and high craft level, which makes sure the stronger and stability of fork chassis and long working life.
- Ergonomically designed handle with comfortable rubber grip allow the optimized safety and comfortable to ensure the excellent operation of three position operational handle lever for lifting, transporting and lowering purpose.
- Easy access to the lowest pallets and containers with the minimum floor clearance.
- The pallet truck with excellent turning angle of 190 degree to ensure a 4-directional movement capability and it provides the flexibility to maneuver wide loads through standard aisles.
| Model | CBY-JC2.0 | CBY-JC2.0 |
| Capacity(kg) | 2000 | 2000 |
| Min.fork height(mm) | 75 | 75 |
| Max.fork height(mm) | 185 | 185 |
| Lifting height(mm) | 110 | 110 |
| Fork length(mm) | 1150 | 1220 |
| Single fork width(mm) | 150 | 150 |
| Width overall forks(mm) | 550 | 685 |
| Fork wheel-tandem(mm) | Φ70×60 | Φ70×60 |
| Steering wheel(mm) | Φ160×50 | Φ160×50 |
| Self weight(kg) | 55 | 65 |
| Qty/20 feet container(pcs) | 180 | 144 |
