GTBZ(BATTERY DRIVE)
NIULI
8427900000
| Quantity: | |
|---|---|

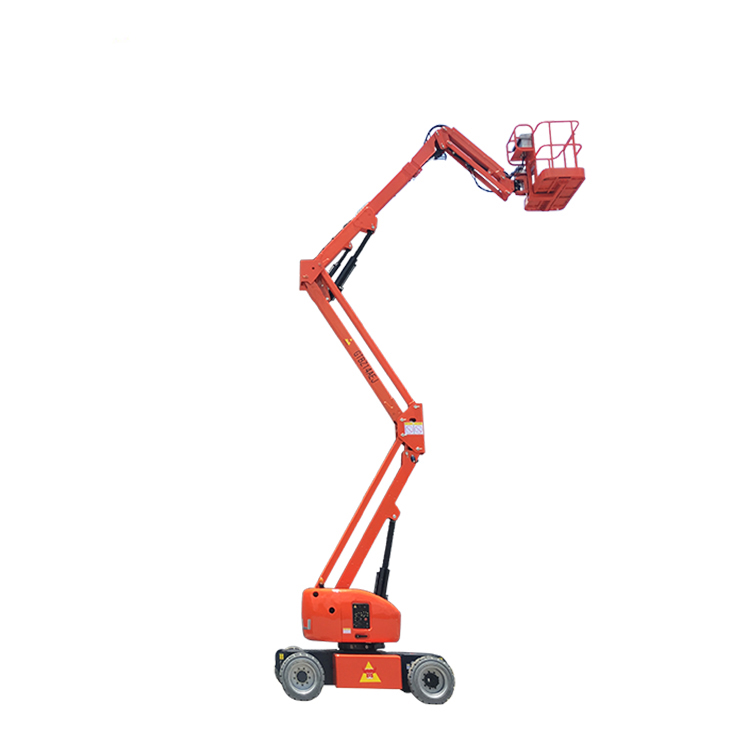

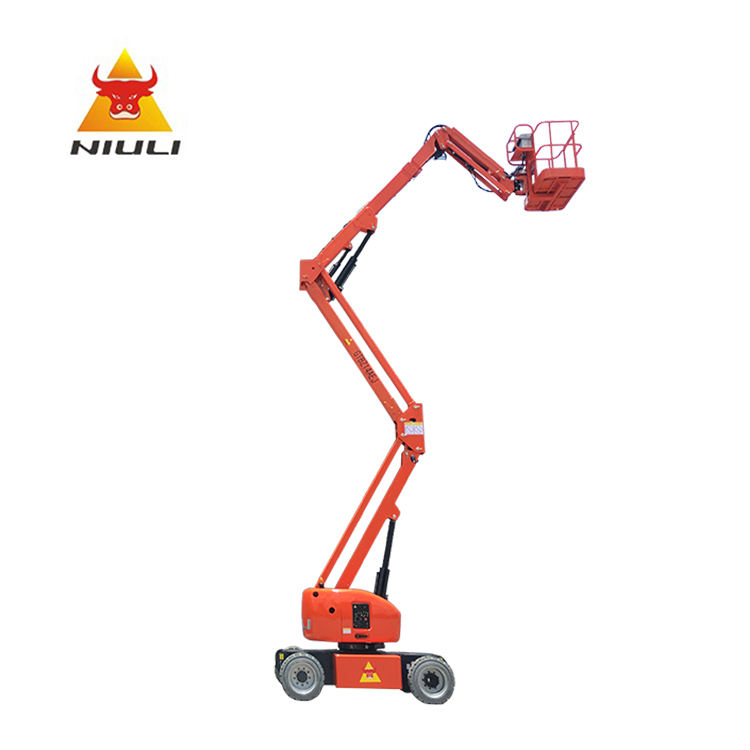

The articulated arm aerial work platform has a telescopic arm, which can be suspended, cross a certain obstacle or lift in one place for multi-point operation; the lifting platform has good mobility and convenient transfer site; beautiful appearance, suitable for indoor and outdoor operation and storage.
● battery powered drive;
● The upper and lower consoles are protected by control panels and protective covers;
● Adopt airtight bipolar filtration to adapt to dusty environment operation;
● High security and simple operation.

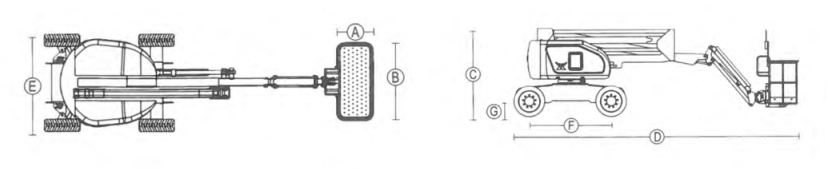

| Model | Load Capacity(kg) | Max Working/Platform Height(mm) | Max Horizontal Reach(m) | Platform Size(L*W) | Grade-ability | Total Weight(kg) |
| GTBZ-12AE | 230 | 14.3/12.3 | 7.3 | 1.53×0.76 | 16.7°(30%) | 6400 |
| GTBZ-14AEJ | 230 | 15.8/13.8 | 7.3 | 1.53×0.76 | 16.7°(30%) | 6800 |
| GTBZ-16AE | 230 | 18.3/16.3 | 8 | 1.53×0.76 | 16.7°(30%) | 7000 |
| GTBZ-18AEJ | 230 | 19.8/17.8 | 8 | 1.53×0.76 | 16.7°(30%) | 7200 |
