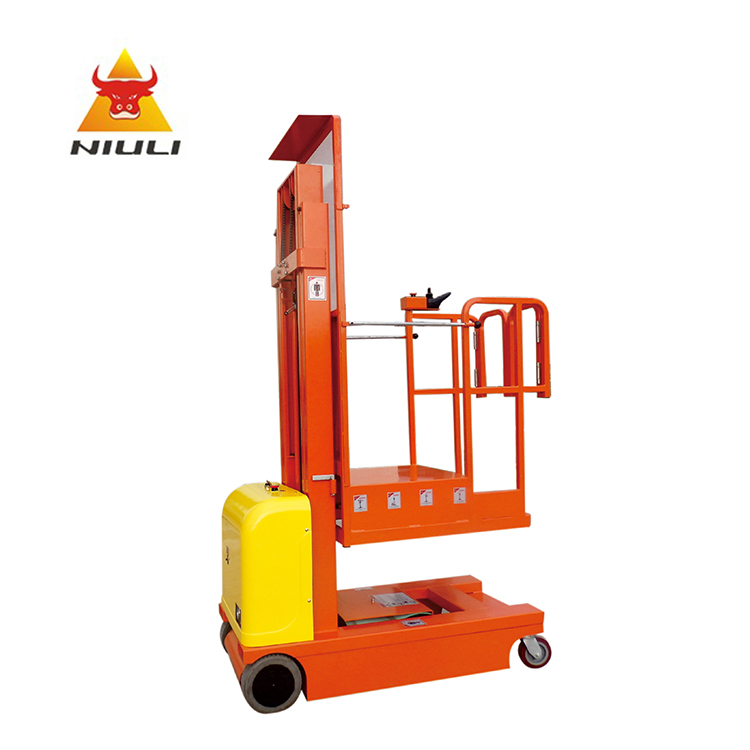

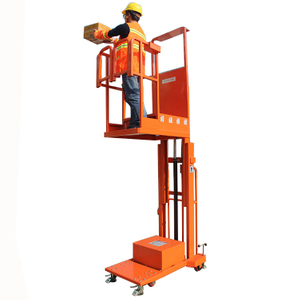

With the function of automatic walking, it can complete all actions such as lifting, forward and backward, and steering in the air. It is suitable for single-person operation, mainly used for high-altitude operations in electric power, communication, airports, exhibition centers, hotels, supermarkets, factories, stations, docks, subway stations and other places.
● Small size is convenient for working in narrow spaces;
● The use of large-capacity traction batteries greatly improves the working time;
● Circuit fault code display is convenient for maintenance.
SPECIFICATION | GOPZ202 | GOPZ302 | GOPZ3.502 | GOPZ3.503 | GOPZ403 | GOPZ4.503 |
Load capacity | 300KG | 300KG | 300KG | 300KG | 300KG | 300KG |
Platform height(H3) | 2m | 3m | 3.5m | 3.5m | 4m | 4.5m |
Working height(H2) | 4m | 5m | 5.5m | 5.5m | 6m | 6.5m |
Overall height(H1) | 1.42m | 1.93m | 2.15m | 1.64m | 1.82m | 1.98m |
Overall width(W1) | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m |
Overall length(L1) | 1.53m | 1.53m | 1.53m | 1.53m | 1.53m | 1.53m |
Maximum slope | 1.5-3. | 1.5-3. | 1.5-3. | 1.5-3. | 1.5-3. | 1.5-3. |
Gradeabitity | 30% | 30% | 30% | 30% | 30% | 30% |
Maximum Drive Speeds-Stowed | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
Maximum Drive Speeds-Raised | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h |
Ground clearance | 0.04m | 0.04m | 0.04m | 0.05m | 0.05m | 0.05m |
Wheelbase | 1.24m | 1.24m | 1.24m | 1.24m | 1.24m | 1.24m |
Front wheels | 6in | 6in | 6in | 6in | 6in | 6in |
Drive wheel | 250*8 | 250*8 | 250*8 | 250*8 | 250*8 | 250*8 |
Batteries | 2-12V/120Ah | 2-12V/120Ah | 2-12V/120Ah | 2-12V/120Ah | 2-12V/120Ah | 2-12V/120Ah |
Integarted charger | 24V/15A | 24V/15A | 24V/15A | 24V/15A | 24V/15A | 24V/15A |
Drive motors | 2-24V/0.5KW | 2-24V/0.5KW | 2-24V/0.5KW | 2-24V/0.5KW | 2-24V/0.5KW | 2-24V/0.5KW |
Lifting motor | 24VDC/1.5KW | 24VDC/1.5KW | 24VDC/1.5KW | 24VDC/1.5KW | 24VDC/1.5KW | 24VDC/1.5KW |
Self weight | 400KG | 574KG | 588KG | 655KG | 665KG | 675KG |
Platform size | 0.95*0.64m | 0.95*0.64m | 0.95*0.64m | 0.9*0.64m | 0.9*0.64m | 0.9*0.64m |
Up/Down speed | 12/14sec | 20/22sec | 24/26sec | 17/19sec | 20/22sec | 23/25sec |
