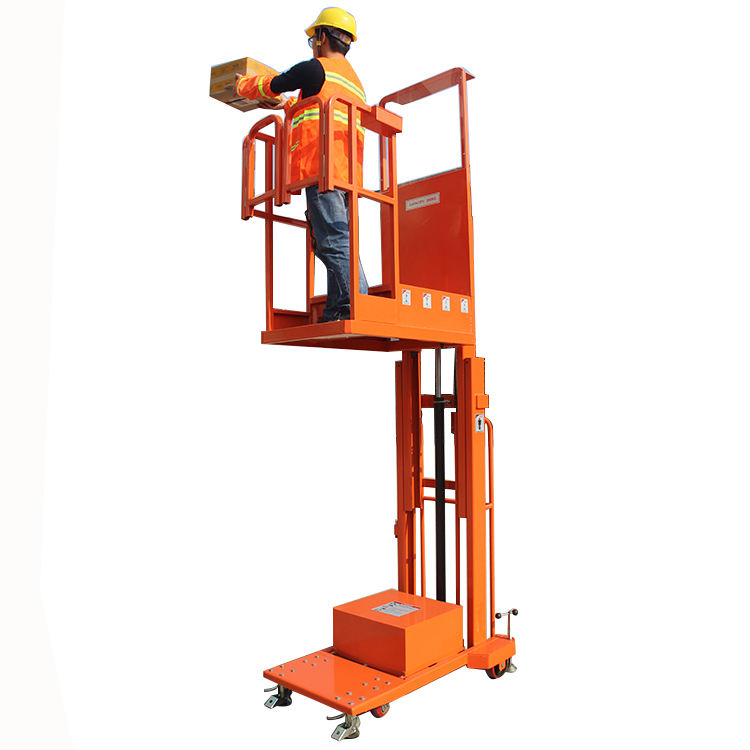

With the function of automatic walking, it can complete all actions such as lifting, forward and backward, and steering in the air. It is suitable for single-person operation, mainly used for high-altitude operations in electric power, communication, airports, exhibition centers, hotels, supermarkets, factories, stations, docks, subway stations and other places.
● Small size is convenient for working in narrow spaces;
● The use of large-capacity traction batteries greatly improves the working time;
● Circuit fault code display is convenient for maintenance.
SPECIFICATION | Unit | GOPY2.702 | GOPY3.302 | GOPY3.503 | GOPY403 | GOPY4.503 |
Capacity | kg | 200 | 200 | 200 | 200 | 200 |

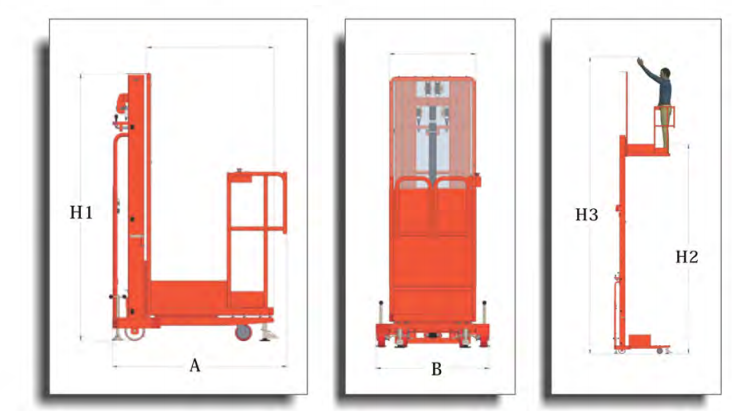

Max Platform height(H2) | mm | 2700 | 3300 | 3500 | 4000 | 4500 |
Max Working height(H3) | mm | 4700 | 5300 | 5500 | 6000 | 6500 |
Platform size | mm | 950x600 | 950x640 | 950x640 | 950x640 | 950x640 |
Max lifting speed | mm/s | 19 | 25 | 25 | 30 | 34 |
Mx doen speed | mm/s | 17 | 22 | 20 | 25 | 30 |
Rear wheel size | mm | 150x50 | 150x50 | 150x50 | 150x50 | 150x50 |
front sheel size | mm | 125 | 125 | 125 | 125 | 125 |
Overall length(A) | mm | 1310 | 1310 | 1310 | 1310 | 1310 |
Overall width(B) | mm | 760 | 840 | 840 | 840 | 840 |
Overall height(H1) | mm | 1760 | 2040 | 1670 | 1830 | 2000 |
Battery | V/Ah | 12/120 | 12/120 | 12/120 | 12/120 | 12/120 |
Charger | V/A | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 |
Lifting motor | V/KW | 12/1.6 | 12/1.6 | 12/1.6 | 12/1.6 | 12/1.6 |
Self weight | KG | 265 | 315 | 390 | 405 | 420 |
