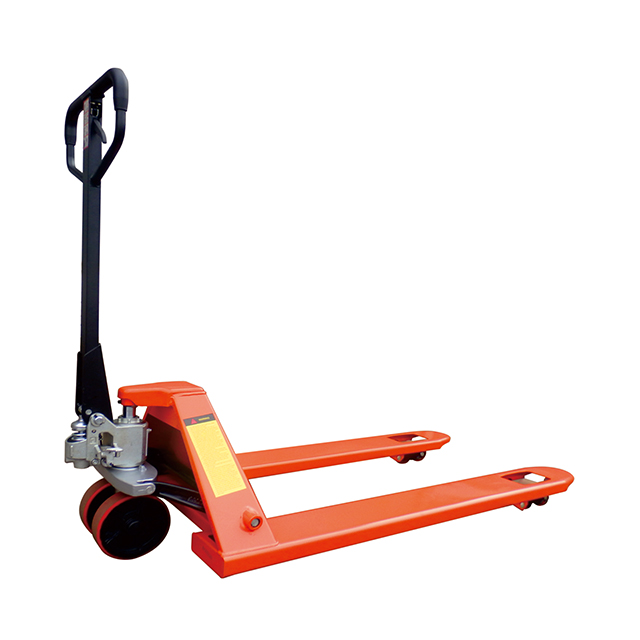

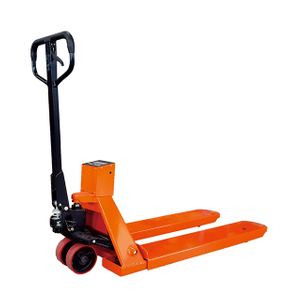

CBY-BF
NIULI
8427900000
Availability: | |
---|---|
Quantity: | |
Product Superiority
- hand pallet truck use robots welding to ensure the excellent quality and high craft level, which makes sure the stronger and stability of fork chassis and long working life.

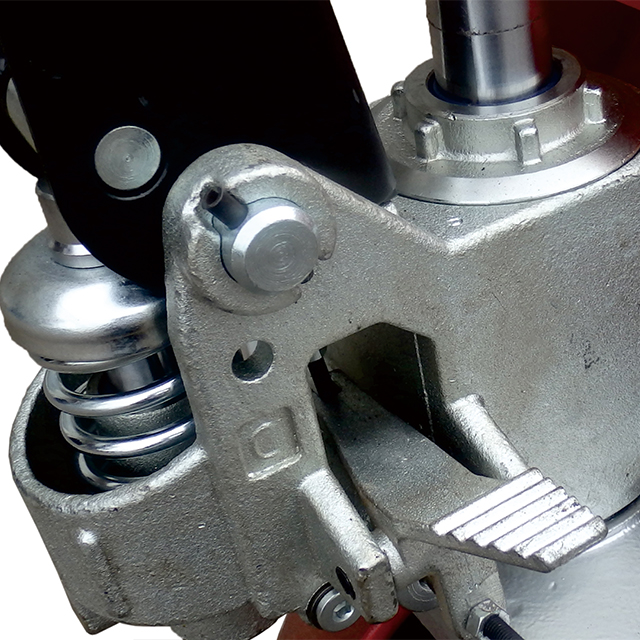

- Ergonomically designed handle with comfortable rubber grip allow the optimized safety and comfortable to ensure the excellent operation of three position operational handle lever for lifting, transporting and lowering purpose.
- Easy access to the lowest pallets and containers with the minimum floor clearance.
- The pallet truck with excellent turning angle of 190 degree to ensure a 4-directional movement capability and it provides the flexibility to maneuver wide loads through standard aisles.

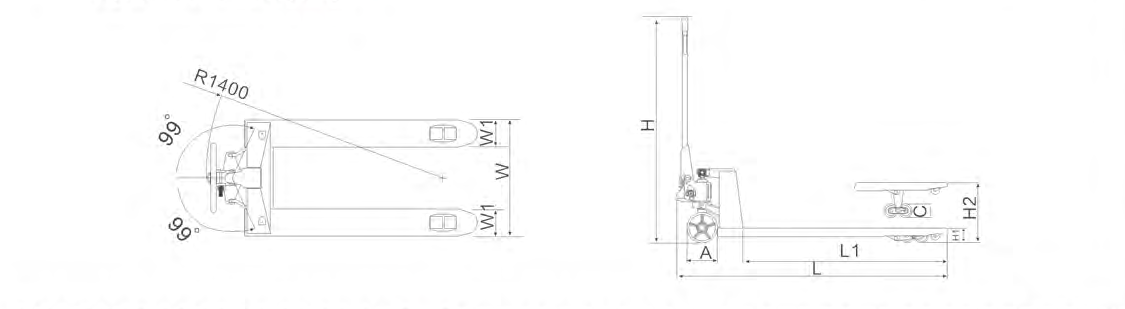

Model | CBY-BF20 | CBY-BF25 | CBY-BF30 |
Capacity(kg) | 2000 | 2500 | 3000 |
Min.fork height(mm) | 65/75/85 | 65/75/85 | 65/75/85 |
Max.fork height(mm) | 175/185/195 | 175/185/195 | 175/185/195 |
Lifting height(mm) | 110 | 110 | 110 |
Fork length(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
Single fork width(mm) | 160 | 160 | 160 |
Width overall forks(mm) | 550/685 | 550/685 | 550/685 |

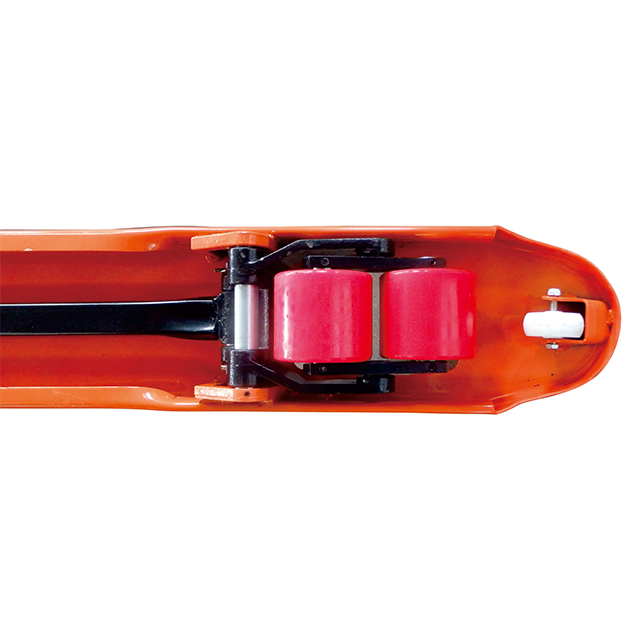

Fork wheel-single(mm) | Φ64×93/Φ74×93/Φ84×93 | Φ64×93/Φ74×93/Φ84×93 | Φ64×93/Φ74×93/Φ84×93 |
Fork wheel-tandem(mm) | Φ64×70/Φ74×70/Φ80×70 | Φ64×70/Φ74×70/Φ80×70 | Φ64×70/Φ74×70/Φ80×70 |
Steering wheel(mm) | Φ160×50/Φ180×50/Φ180×50 | Φ160×50/Φ180×50/Φ180×50 | Φ160×50/Φ180×50/Φ180×50 |
Self weight(kg) | 73-92 | 73-92 | 73-92 |
Qty/20 feet container(pcs) | 180/144 | 180/144 | 180/144 |
